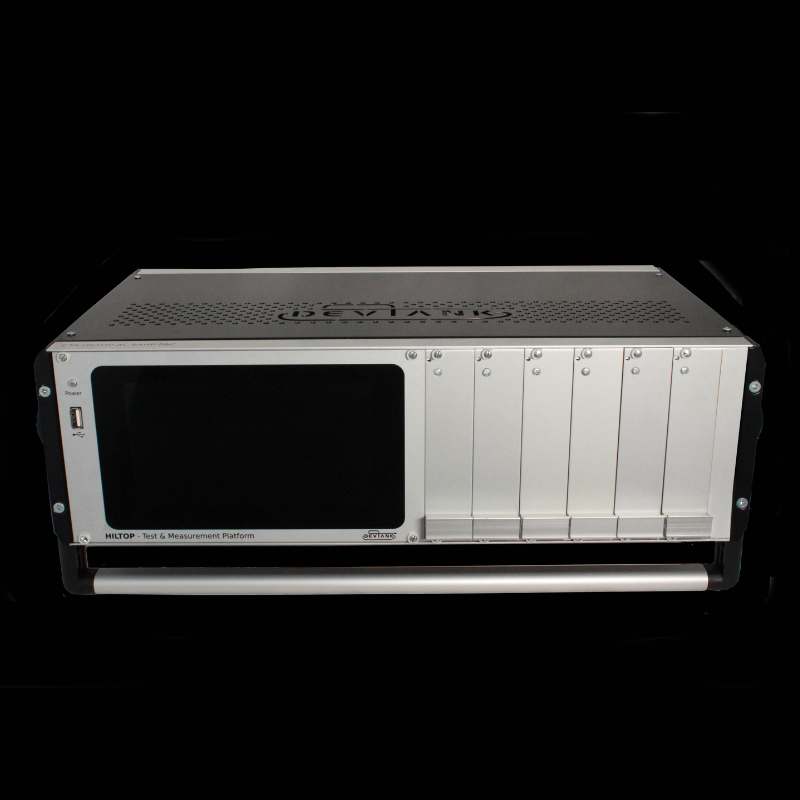

HILTOP Maxi
Price range: £4,500.00 through £4,735.00
Hardware in the Loop Test Operating Platform (HILTOP). An industrial open source test and measurement chassis which has the Raspberry Pi Compute module at its core. Ideal for ATE solutions, hardware in the loop testing, production process, automation and control.
This comprehensive flexible platform allows test, measurement and control solutions to be realised using numerous built in multi-channel interfaces such as USB2.0, CAN-FD, RS485, I2C, SPI & GPIO.
Easily expanded to add new interfaces and capability using the Open-VTI backplane and our family of Open Test Modules. The HILTOP Maxi offers 6 x 6HP Eurocard slots using the popular DIN41612 connector format.
Enquire Now
Description
HILTOP Compact: Versatile Test & Measurement Platform
Powerful Processing
1.5GHz Broadcom Quad-Core ARM Cortex (Raspberry Pi CM4)
Modular Expansion
High-Speed Open-VTI backplane with 6 Eurocard slots (100 x 160mm) for easy upgrades
Versatile Interfaces: USB2.0, LVDS, CAN-FD, RS485, and more
Versatile Interfaces
USB2.0, LVDS, CAN-FD, RS485, and more
Robust Storage
Integrated 1TB hard drive with SATA support
Connectivity
Gigabit Ethernet, 3x USB 2.0 ports, 1x USB 3.0 port
User-friendly
7” high-contrast color touchscreen, GPIO expansion, USB barcode scanner and camera support
Reliable Power
Integrated programmable 30V/2A power supply
Advanced Control
Dual software platform with shop floor and remote web access, auto script generation from DOORS® or spreadsheets
Data Management
SQL database integration for comprehensive data logging
Expandable & Customisable
Add modules from our Open Test Modules (OTM) range or design your own with the Eurocard form factor.
Accessories
Hard luggage case, 19” rack mount brackets.
Carry Handle
Robust carry handle for ease of moving around.
Additional information
| cpu | Raspberry Pi CM4 |
|---|---|
| hdd | SATA Interface and internal 2.5” 1TB Hard drive |
| display | DSI (FFC-15 way) (Touchscreen) and HDMI |
| camera | CSI Port (FFC-15way) |
| connectivity | 1 x Internal Fan + Spare fan channel, 2 x Isolated CAN FD channels, 2 x Isolated RS485 Channels, 2x 40 Way main board GPIO Headers for internal expansion, 4 x USB 2.0 ports, Gigabit LAN, Open VTI Backplane with 6 x 6HP Card slots |
| peripherals | 2-30V DC Adjustable Power Supply with access via card slots or 2 x 4mm sockets on rear panel, EEPROM for Config Data, Onboard Temp Monitor, RTC |
| other | *Data Logging Capability with SQL database integration, *Dual control software platform accessed either from the shop floor or remote web interface, *Software features are bespoke to each application – please contact Devtank with your requirements, *Support for Auto Script generation from DOORS® or Spreadsheet test specifications, 7" high contrast colour touch screen fitted as standard, Touchscreen (DSI) & Camera (CSI) support |
| dimensions | 84HP: 449mm x 250.4mm, Standard 3U x 6HP Card Slot: 30mm x 128.5mm |

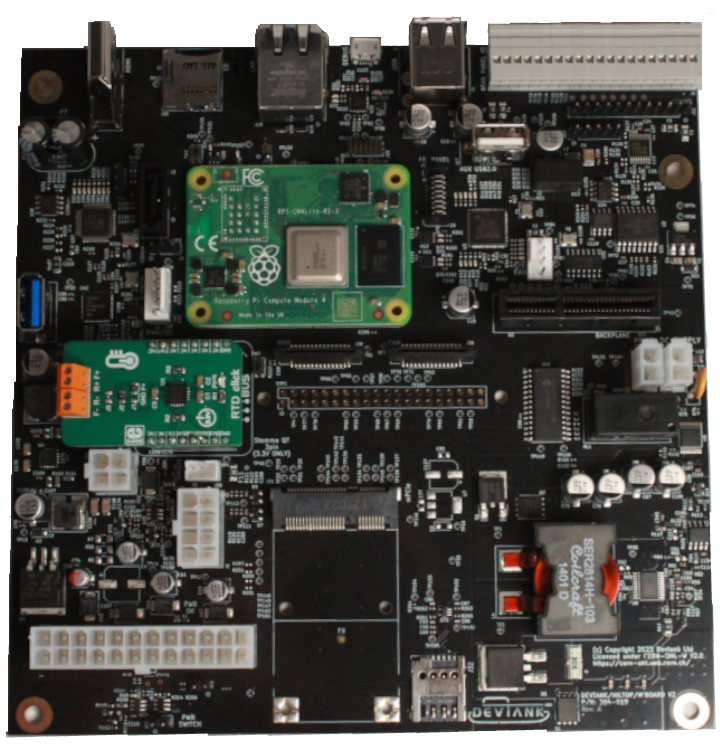

| design-sources | Github: https://github.com/devtank-ltd, Motherboard Design: https://github.com/devtank-ltd/kicad_hiltop_motherboard |
| power-supply | 110V-240V AC 200W (Standard), 120W DC 12V |
