Compact
Price range: £3,500.00 through £3,735.00
HILTOP Compact is our 3 card test platform. Running with a CM4 heart, this piece of equipment packs the punch you need to test for perfection.
Enquire Now
Description
HILTOP Compact: Versatile Test & Measurement Platform
The HILTOP Compact is a cutting-edge, open-source test framework designed for flexibility and durability. Ideal for automated testing and industrial applications, this 3U rack-mounted system integrates seamlessly into 19” racks and larger test setups.
Powerful Processing

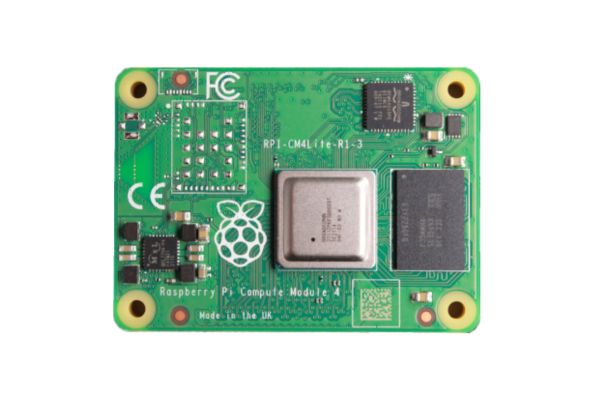

1.5GHz Broadcom Quad-Core ARM Cortex (Raspberry Pi CM4)
Modular Expansion

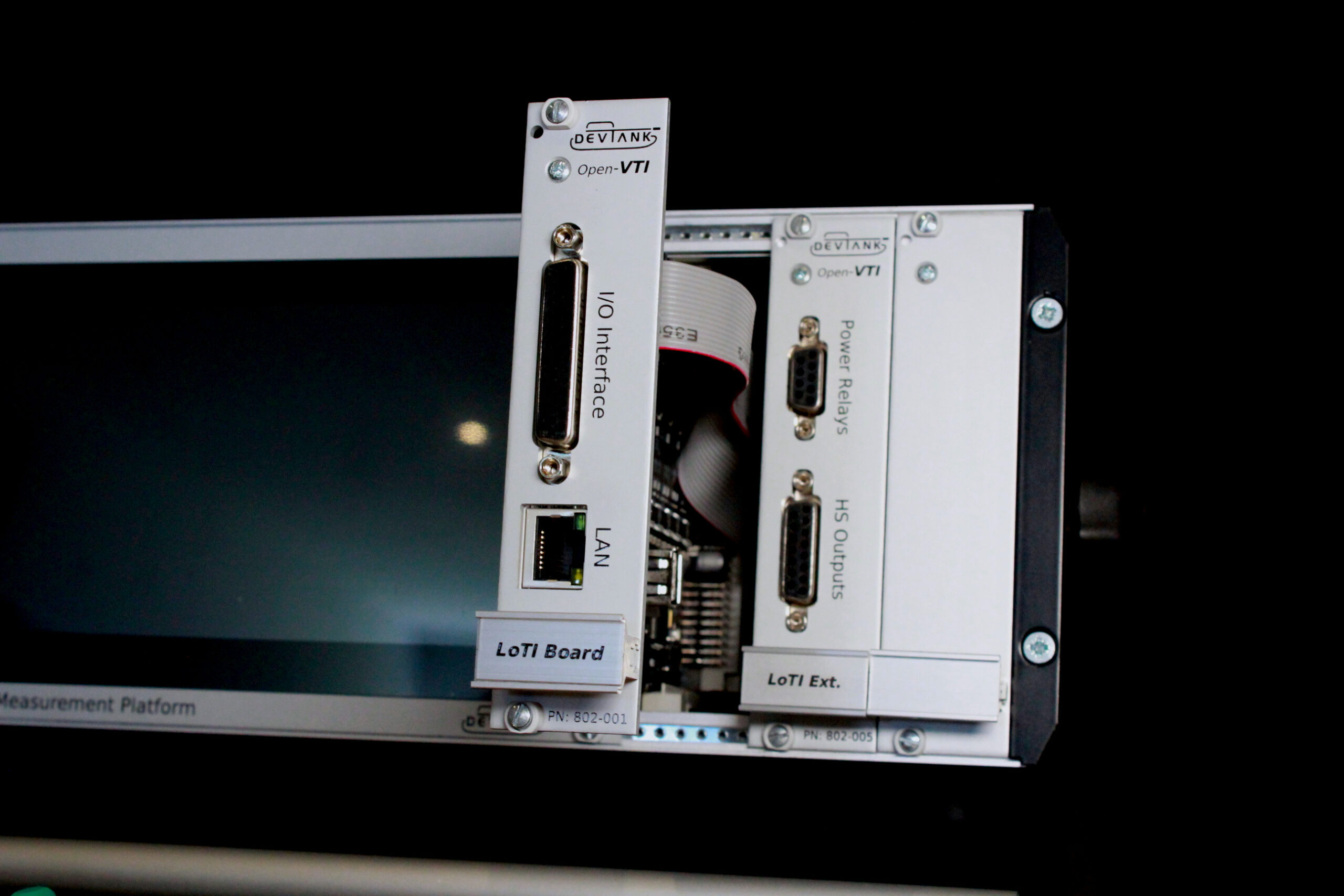

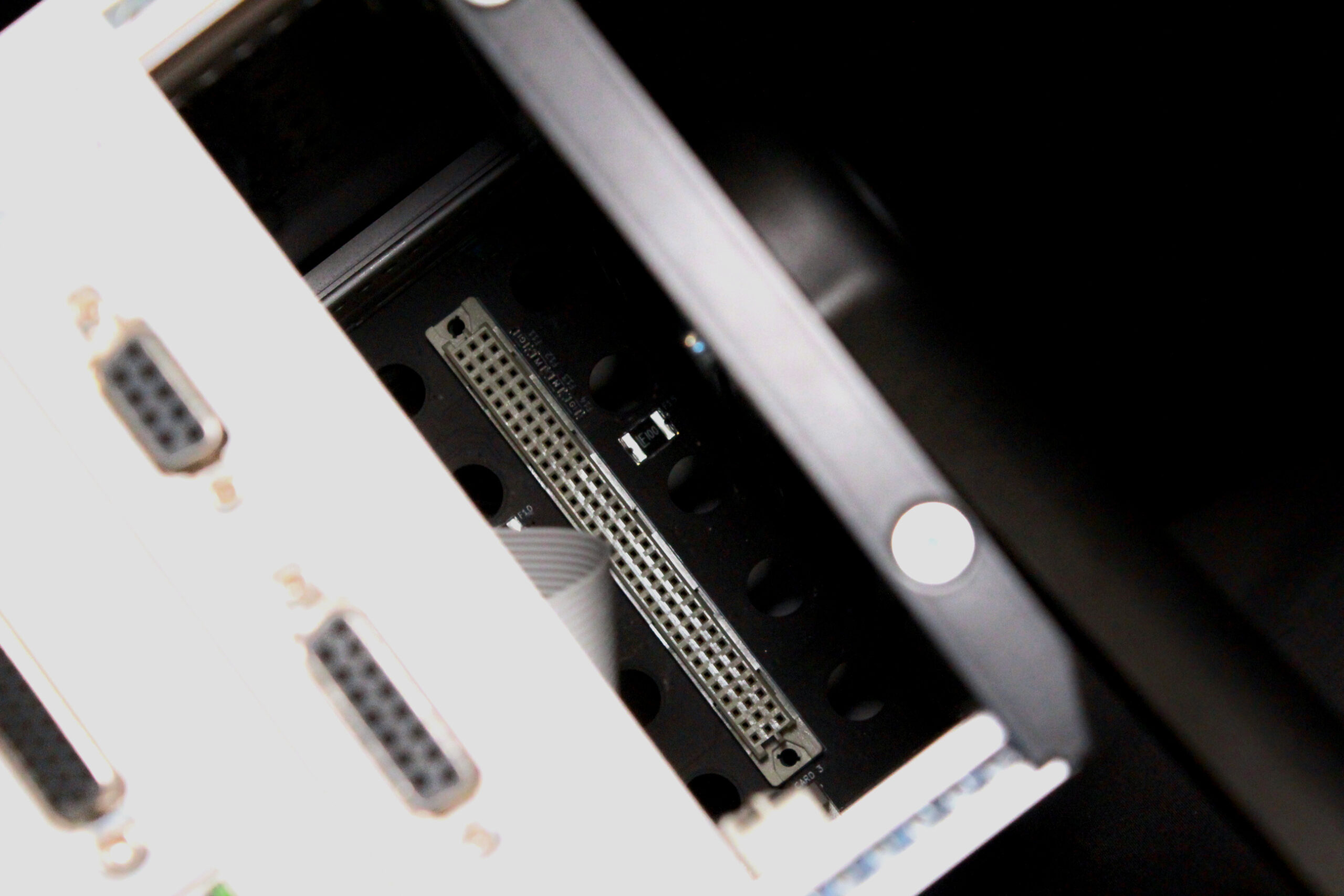

High-Speed Open-VTI backplane with 3 Eurocard slots (100 x 160mm) for easy upgrades
Versatile Interfaces: USB2.0, LVDS, CAN-FD, RS485, and more
Versatile Interfaces
USB2.0, LVDS, CAN-FD, RS485, and more
Robust Storage
Integrated 1TB hard drive with SATA support
Connectivity

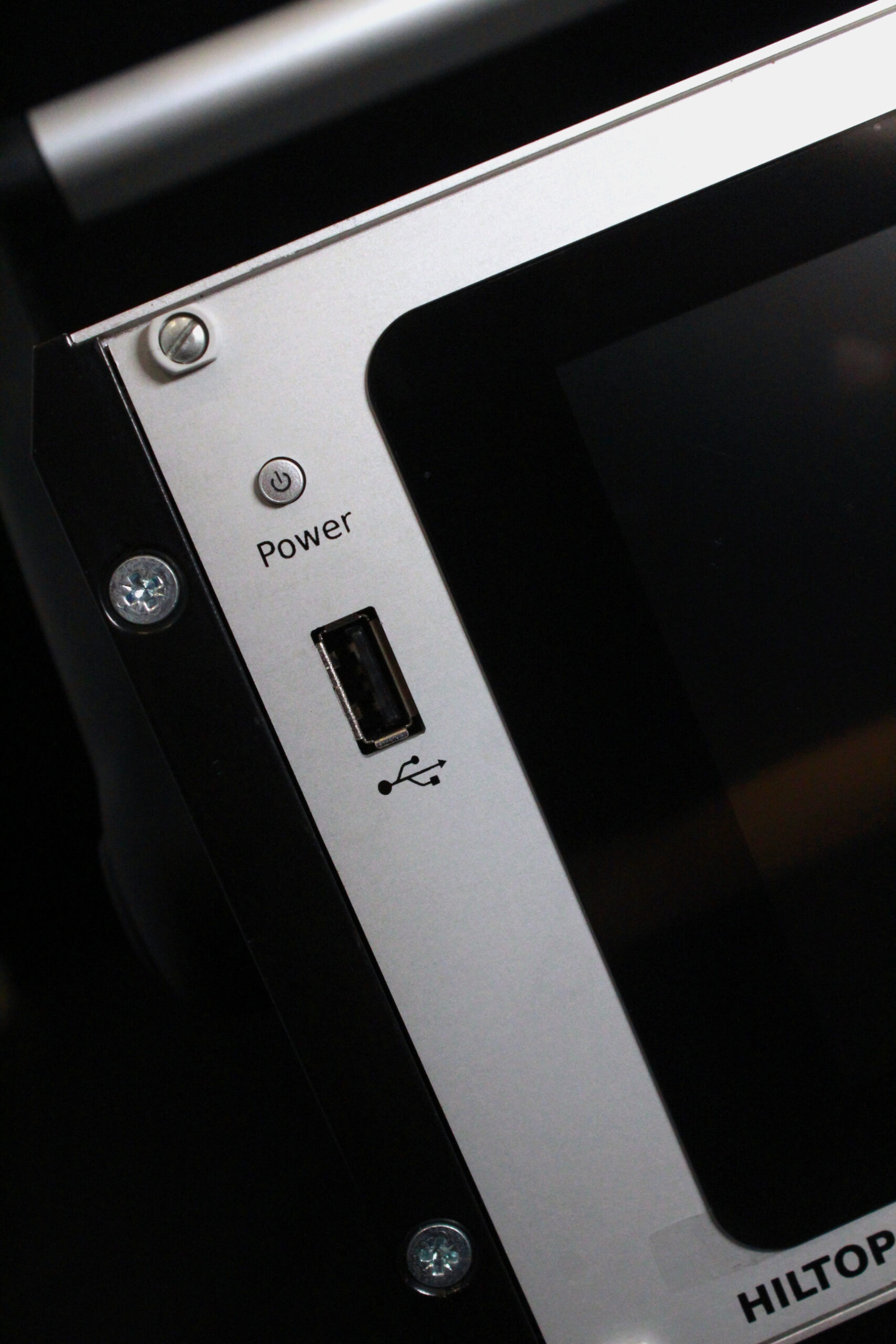

Gigabit Ethernet, 3x USB 2.0 ports, 1x USB 3.0 port
User-friendly

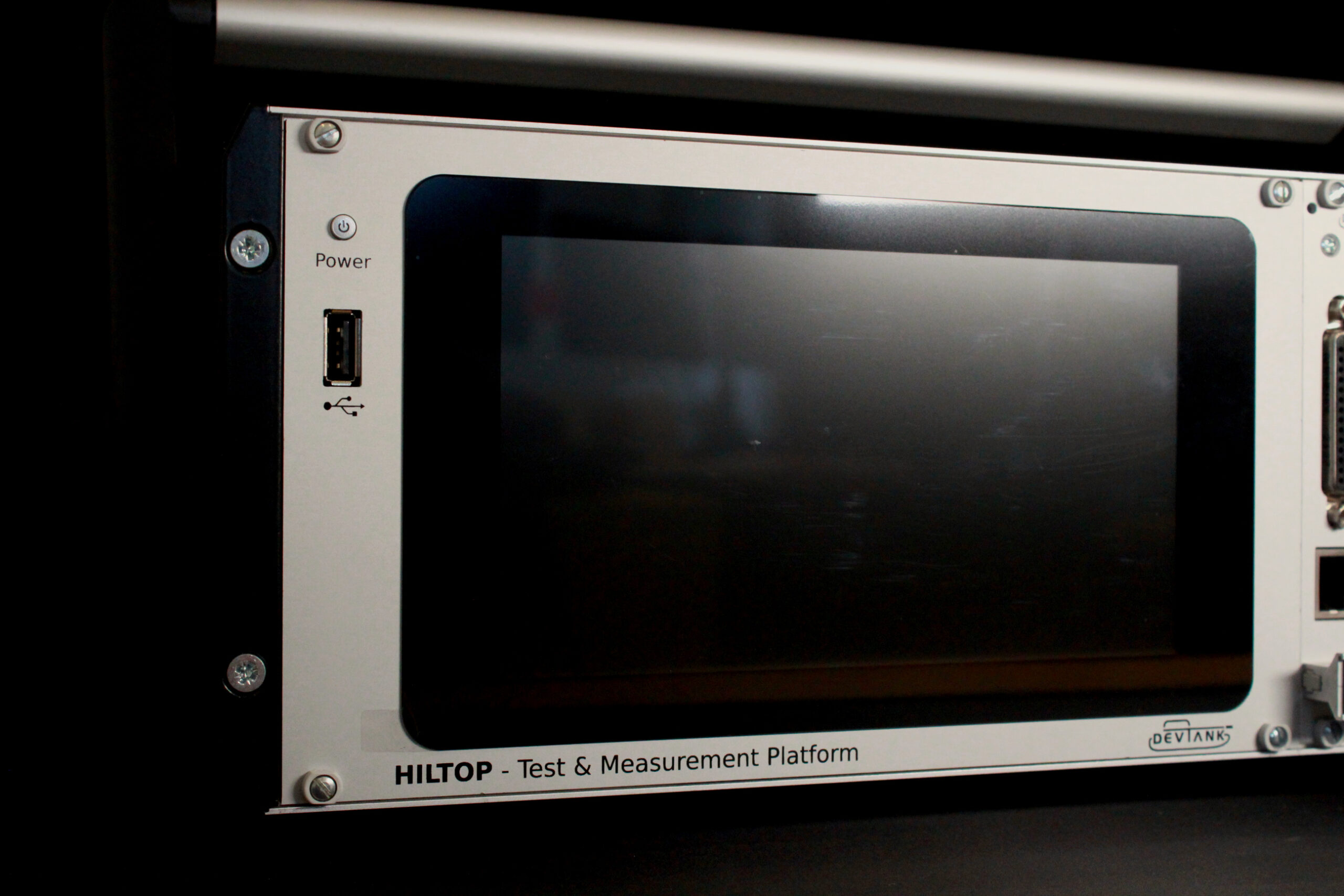

7” high-contrast color touchscreen, GPIO expansion, USB barcode scanner and camera support
Reliable Power

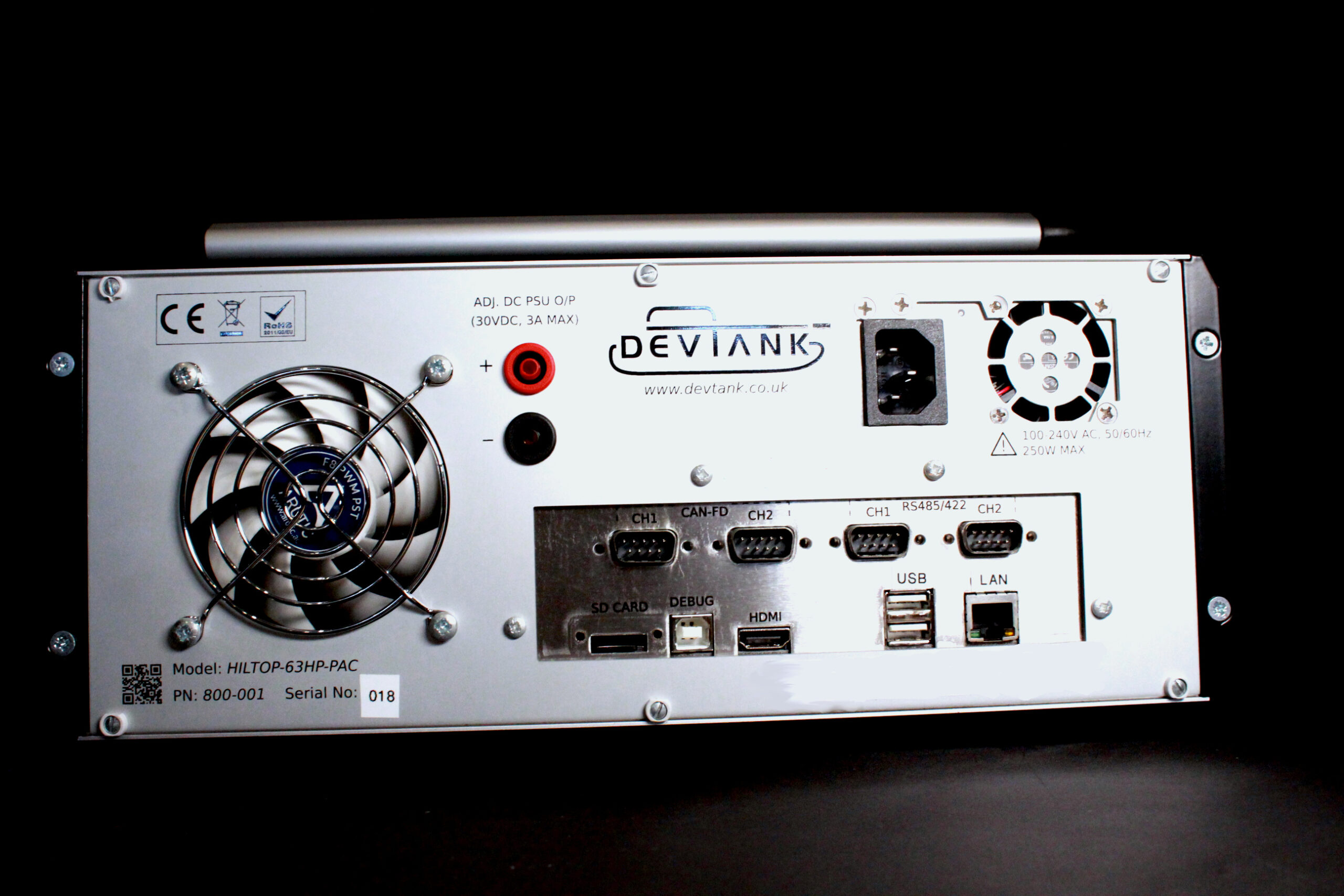

Integrated programmable 30V/2A power supply
Advanced Control
Dual software platform with shop floor and remote web access, auto script generation from DOORS® or spreadsheets
Data Management
SQL database integration for comprehensive data logging
Expandable & Customisable
Add modules from our Open Test Modules (OTM) range or design your own with the Eurocard form factor.
Accessories
Hard luggage case, 19” rack mount brackets.

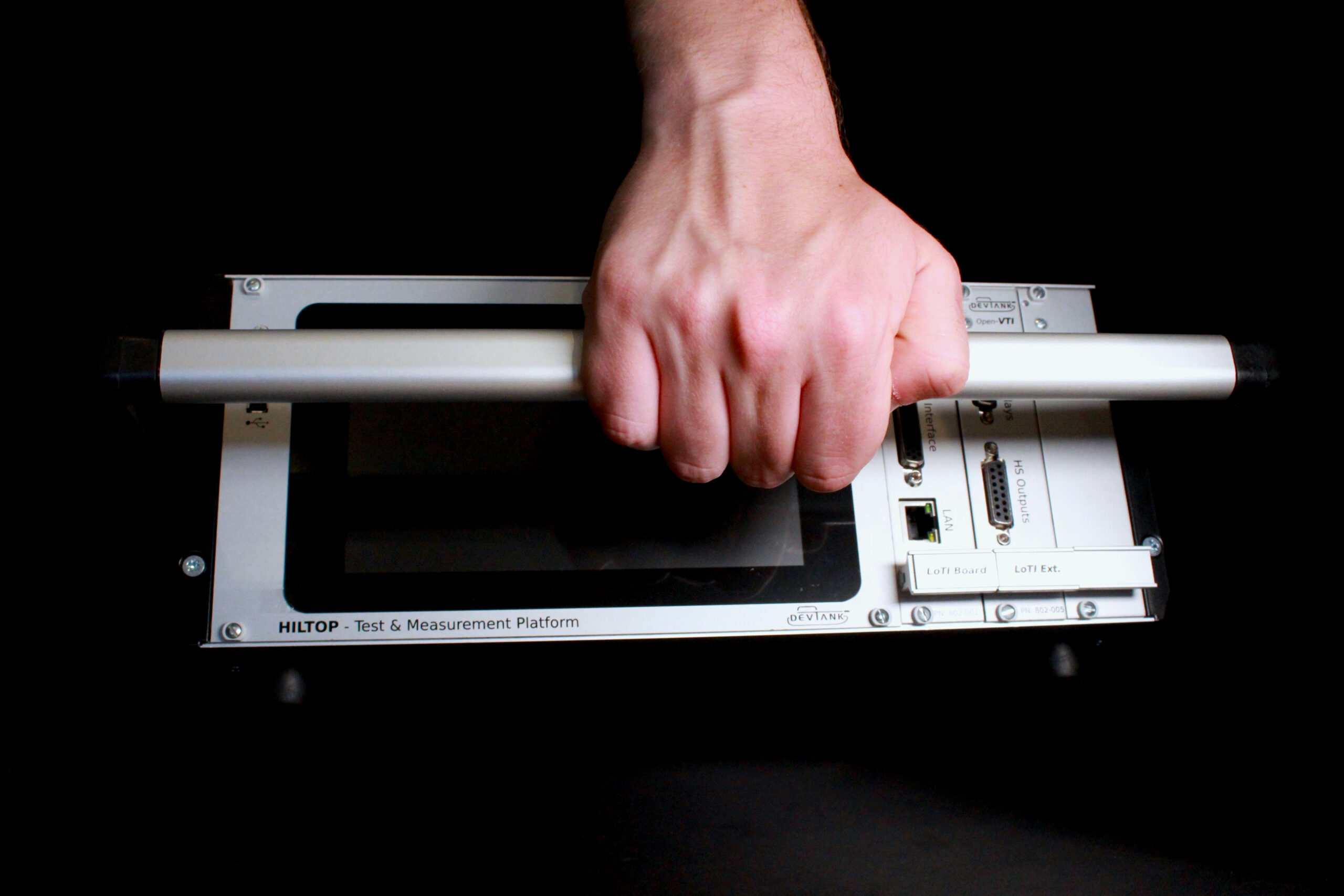

Carry Handle
Robust carry handle for ease of moving around.
